LG 65UN73506LB . Damp eMMC + EEPROM.

   (0 reviews)

3 Screenshots

About This File

LG 65UN73506LB

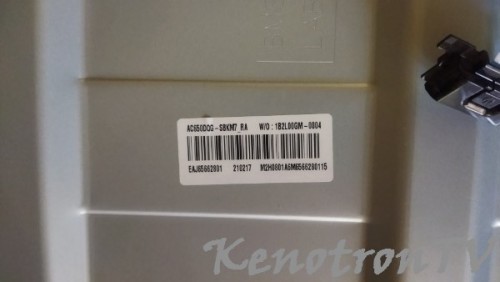

PANEL: AC650DQG-SBKM7_RA
MAIN: LJ20 / EAX69083603(1.0)
CPU: LGE0551-AS1
EMMC: KLM8G1GETF-B041\8GTF4R (IC8800) дамп не кодирован
EEPROM: FT24C256A (IC200)

Лог EMMC:

Спойлер

Using:
1bit bus
EMMC timing (16MHz)
Use Fixed Block operation
Using Ignore Errors
eMMC OCR 0xC0FF8080 after 2 attempts
Send CMD1 error!
eMMC (0) CID = 150100384754463452063A9B93C9C7 (1F)
Send CMD2 error!
Found 1 eMMC device(s)
eMMC CSD = D02701320F5903FFF6DBFFEF8E4040
eMMC: Version 4.xx
eMMC: Maximum speed 26,00 MHz
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 16 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1 bit
eMMC: EXT_CSD:
000000000000000101013F3F01020005
0703030000C781000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000000000000000000010F000000
00000000000000000000000000000000
00000000000000000000000000000000
00000101010008010000000000000000
000600000100000A3C00000000001E00
0000000000000002551B110700200701
010110070700110700E9000001000000
0000000000000000020A1F5700020008
00000000000000010000000000000000
00000000000000041F14000000000007
0001D200000000000000000000000000
00000000000000000000000000010000
00000000000000000000000000000000
00000000000000000000050000000000
00000000000000000000010000000000
0000000000000000000000C8C800000F
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000039
00000000000000000000000000000000
eMMC: DRIVER_STRENGTH 1F
SET: Using Mode1 strength
EXTCSD: Device support HS SDR 26MHz
EXTCSD: Device support HS SDR 52MHz
EXTCSD: Device support HS DDR 52MHz 1.8V
EXTCSD: Device support HS200 SDR 1.8V
EXTCSD: Device support HS400 DDR 1.8V
EXTCSD: EXT_CSD RST_n временно отключен
EXTCSD: ACC Size = 32768 byte
eMMC: EXT_CSD User Partition Size = 7818182656 Byte
eMMC: Version 5.1
FFU SUPPORTED MODES = 0x3
FFU FEATURES = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU ARGUMENTS = 0xC781
FFU NUMBER OF FW SECTORS CORRECTLY PROGRAMMED = 0x0
OPTIMAL_READ_SIZE = 0x0
OPTIMAL_WRITE_SIZE = 0x8
DEVICE VERSION = 0.0
FIRMWARE_VERSION = 60000000
Enhanced Strobe mode = 0x1
EXTCSD: FW CONFIG = 0x0
EXTCSD: PARTITION CONFIG = 0x0
EXTCSD: BOOT BUS WIDTH = 0x0
Загрузка с еММС не используется
x1 (sdr) или x4 (ddr) используется при загрузке
EXTCSD: Device support partitioning features
EXTCSD: Device support enhanced technological features
EXTCSD: Device support extended partitions attribute
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 524288 byte
RPMB: Use correct key to read/write! (812)
eMMC MID = 0x0015, OEM ID = 0x0001
eMMC Product Name = 8GTF4R
eMMC Name = KLM8G1GETF-B041
eMMC Serial number = 0x3A9B93C9
eMMC Revision = 0.6
eMMC Date 12/2020

----- eMMC 5.0 Health info -----
-> Pre EOL value = 1
Pre EOL -NORMAL- status
-> Life Time SLC value = 1
0- 10% device life time used
-> Life Time MLC value = 1
0- 10% device life time used

VCC 3,25V/292/127mA
VIO 1,84V/37mA



Edited by avdalev
