About This File
Sber SDX-32H2120B

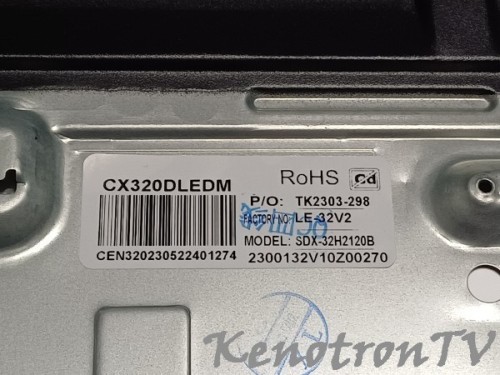

матрица: CX320DLEDM

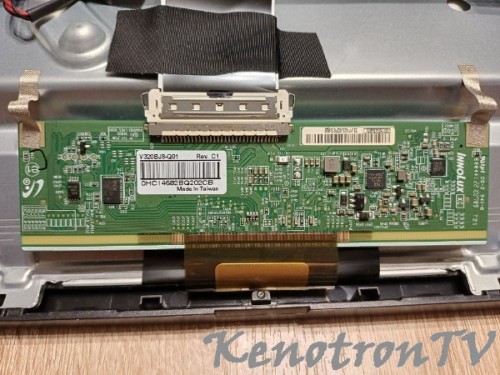

t-con: V320BJ8-Q01

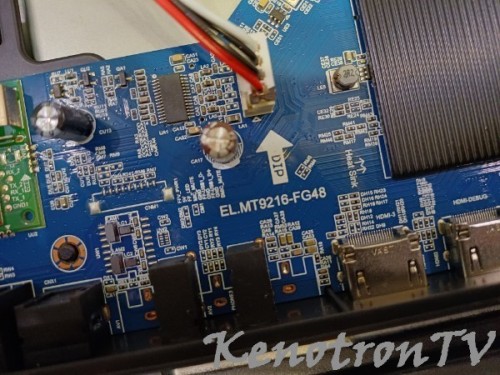

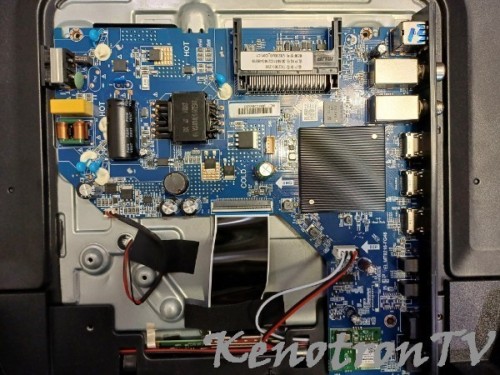

main: EL.MT9216-FG48
eMMC: KLM8G1GETF
Using:
8bit bus
Fast timing (16MHz)
Use Fixed Block operation
Using Ignore Errors
eMMC OCR 0xC0FF8080 after 2 attempts
CMD1 Get Response Error!
R3 Response Check Bits Error (0xF2)!
eMMC (0) CID = 1501003847544634520700CF476627 (C1)
CMD2 Get Response Error!
Found 1 eMMC device(s)
eMMC CSD = D02701320F5903FFF6DBFFEF8E4040
eMMC: Version 4.xx
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 16 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1/4/8 bit
SET: Using HS Timing
eMMC: EXT_CSD User Partition Size = 7818182656 Byte
eMMC: Version 5.1
EXTCSD: FW CONFIG = 0x0
EXTCSD: PARTITION CONFIG = 0x8
EXTCSD: BOOT BUS WIDTH = 0x2
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 524288 byte
RPMB: Use correct key to read/write! (38)
eMMC MID = 0x0015, OEM ID = 0x0001
eMMC Product Name = 8GTF4R
eMMC Name = KLM8G1GETF-B041
eMMC Serial number = 0xCF4766
eMMC Revision = 0.7
eMMC Date 2/2004
Edited by KozodoyMS
