ELECT EDR-7817

   (0 reviews)

2 Screenshots

About This File

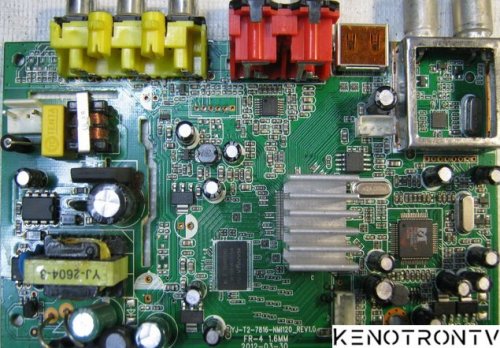

Шасси: YJ-T2-7816-NM120_REV 1.0
FR-4 1.6 MM 2012-03-30.
Проц: под радиатором.
Флэш: 25Q32BVSIG.
Тюнер: NM120AA.
MSB1230-LF.
AMS1117--3.3V
AMS1117--1,8V
AMS1117--3.3V
AMS1117--2.5V
DC/DC:маркировка .CU2AH, SOT-23-5
Блок питания: SW2604.
