TDA1517P, YD1517P - STEREO POWER AMPLIFIER

   (1 review)

3 Screenshots

About This File

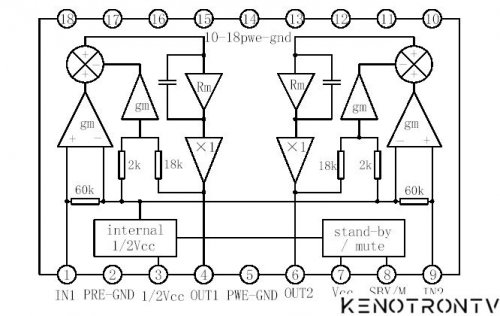

STEREO POWER AMPLIFIER— TDA1517P , YD1517P (DIP18)

1.IN1

2.PRE-GND

3.1/2Vcc

4.OUT1

5.PWE-GND

6.OUT2

7.Vcc

8.SBY/M

9.IN2
