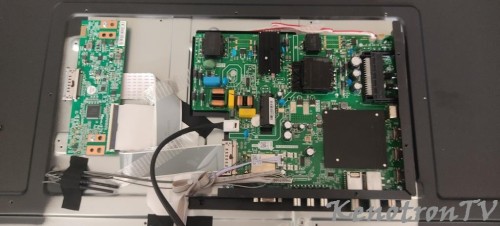

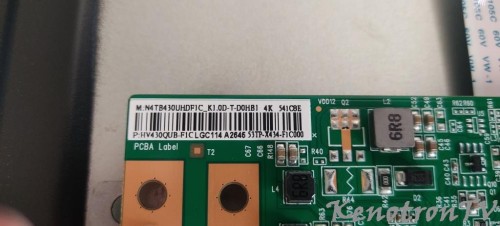

LEFF 43U540S, TP.SK706S.PC822, HV430QUB-F1C

Судя по предоставленному логу, телевизор не запускается, потому что процесс загрузки останавливается на этапе загрузчика U-Boot и не переходит к запуску основной операционной системы (ядра Linux и графического интерфейса).

UART_115200

AC_ON
01-2L-SM-01-20190815
MIU0_DQS-OK
BIST0-OK
optee teeloader entry
CusConfig
eMMC_RPMB_Check_Program_Key
*ree_opt=0000007B
Auth reeloader...
Decrypt reeloader...
Version check on reeloader...
Auth CKB...
Decrypt CKB...
reeloader_addr=20100000
NOTICE:  BL3-1: v1.1(debug):3535a023
NOTICE:  BL3-1: Built : 14:33:39, Sep 16 2020
INFO:    warmboot return address : 7e1c1c00
INFO:    BL3-1: Initializing runtime services
NOTICE:  From args : boot_mbx = 2002808c
INFO:     [Booting] mstar_send_magic_ATF 479
INFO:    BL3-1: Initializing BL3-2
[Ramlog] ramlog_init init success

INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x20100000
INFO:    BL3-1: Next image spsr = 0x1d3
INFO:    BIN1_32bit mode Sep 16 2020 14:33:39
INFO:    R1 0
INFO:    R2 0
INFO:    R3 0
ree_entry
         U
Relocation Offset is: 01A00000
[AT][MB][start ub][573]

U-Boot 2011.06-00229-gc9d784c-dirty (Jul 31 2021 - 08:38:03)

[Mboot] ===== sw IR Config Register =====
[Mboot] ===== Attach IR Interrupt  ======
[Utopia][SYS]: Function = SYSOpen, Line = 3585, current resource pri_shm content                                                                                         is: 0
[Utopia][SYS]: Function = SYSOpen, Line = 3604, [SYS INFO] OPEN INSTANCE...
create instance at 287F1878 with private size 108 bytes at 287F18C8
[Utopia][MIU]: [MIU INFO] miu opencreate instance at 287F1938 with private size                                                                                         168 bytes at 287F1988
create instance at 287F1A38 with private size 60 bytes at 287F1A88

uboot held at [285DDF60~29800000],size=012220A0
Uboot Relocation:  152 MiB
Now running in RAM - U-Boot at: 28E00000

eMMC: HS400 5.1 200MHz
eMMC 7.28 GB
eMMC: used life: 0~10%
CID:0x008891FE
0x34670652
0x34465447
0x38000115
▒CRC Check OPEN: 1
0x8709
▒UART_115200

AC_ON
01-2L-SM-01-20190815
MIU0_DQS-OK
BIST0-OK
optee teeloader entry
CusConfig
eMMC_RPMB_Check_Program_Key
*ree_opt=0000007B
Auth reeloader...
Decrypt reeloader...
Version check on reeloader...
Auth CKB...
Decrypt CKB...
reeloader_addr=20100000
NOTICE:  BL3-1: v1.1(debug):3535a023
NOTICE:  BL3-1: Built : 14:33:39, Sep 16 2020
INFO:    warmboot return address : 7e1c1c00
INFO:    BL3-1: Initializing runtime services
NOTICE:  From args : boot_mbx = 2002808c
INFO:     [Booting] mstar_send_magic_ATF 479
INFO:    BL3-1: Initializing BL3-2
[Ramlog] ramlog_init init success

INFO:    BL3-1: Preparing for EL3 exit to normal world
INFO:    BL3-1: Next image address = 0x20100000
INFO:    BL3-1: Next image spsr = 0x1d3
INFO:    BIN1_32bit mode Sep 16 2020 14:33:39
INFO:    R1 0
INFO:    R2 0
INFO:    R3 0
ree_entry
         U
Relocation Offset is: 01A00000
[AT][MB][start ub][572]

U-Boot 2011.06-00229-gc9d784c-dirty (Jul 31 2021 - 08:38:03)

[Mboot] ===== sw IR Config Register =====
[Mboot] ===== Attach IR Interrupt  ======
[Utopia][SYS]: Function = SYSOpen, Line = 3585, current resource pri_shm content                                                                                         is: 0
[Utopia][SYS]: Function = SYSOpen, Line = 3604, [SYS INFO] OPEN INSTANCE...
create instance at 287F1878 with private size 108 bytes at 287F18C8
[Utopia][MIU]: [MIU INFO] miu opencreate instance at 287F1938 with private size                                                                                         168 bytes at 287F1988
create instance at 287F1A38 with private size 60 bytes at 287F1A88

uboot held at [285DDF60~29800000],size=012220A0
Uboot Relocation:  152 MiB
Now running in RAM - U-Boot at: 28E00000

eMMC: HS400 5.1 200MHz
eMMC 7.28 GB
eMMC: used life: 0~10%
CID:0x008891FE
0x34670652
0x34465447
0x38000115
▒RAM : 1536MB
