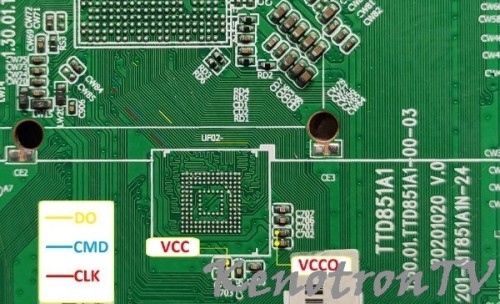

Thomson T55USM7030, eMMC+ isp pinout.

   (0 reviews)

5 Screenshots

About This File

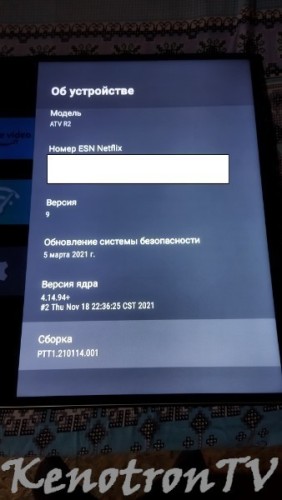

Thomson T55USM7030
MAIN: TTD851A1 \ 1.30.01.TTD851A1-00-03 \ 2020120 V.0 \ 201-MT851A1N-24
CPU: RTD2851ECA

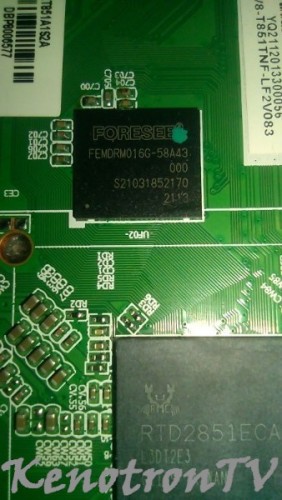

eMMC: FORESEE FEMDRM016G-58A43 (58A43A) eMMC 5.1 BGA-153 дамп не кодирован.

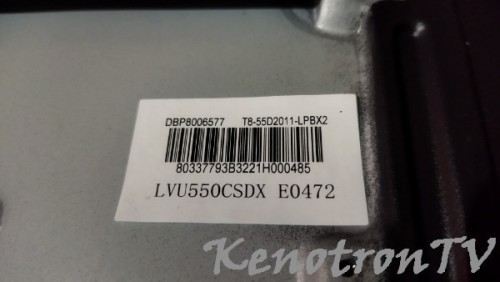

Panel: LVU550CSDX E0472

Лог программатора:

Спойлер

Found 1 eMMC device(s)
eMMC CSD = D0FFFF329F5903FFFFFFFFE7964000
eMMC: Version 4.xx
eMMC: Maximum speed 26,00 MHz
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 8 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1 bit
eMMC: EXT_CSD:
000000000000000101013F3F01030005
07030300000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000000000000000000011F000000
00000000000000000000000000000000
00000000000000000000000000000000
00000002010020010000000000000003
030200000100000A3C00000000001E00
0000000000000005551B110700200601
050108070700161001D2900001000000
00000000000000000A051F5700020008
00000000000000010000000000000000
00000000000000201F15000000000007
00074A00000000000000000000000000
00000000000000000000000000010000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000009
00000000000000000000000000000000
eMMC: DRIVER_STRENGTH 1F
SET: Using Mode1 strength
EXTCSD: Device support HS SDR 26MHz
EXTCSD: Device support HS SDR 52MHz
EXTCSD: Device support HS DDR 52MHz 1.8V
EXTCSD: Device support HS200 SDR 1.8V
EXTCSD: Device support HS400 DDR 1.8V
EXTCSD: EXT_CSD RST_n временно отключен
EXTCSD: ACC Size = 16384 byte
eMMC: EXT_CSD User Partition Size = 15655239680 Byte
eMMC: Version 5.1
FFU SUPPORTED MODES = 0x3
FFU FEATURES = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU ARGUMENTS = 0x0
FFU NUMBER OF FW SECTORS CORRECTLY PROGRAMMED = 0x0
OPTIMAL_READ_SIZE = 0x0
OPTIMAL_WRITE_SIZE = 0x20
DEVICE VERSION = 0.0
FIRMWARE_VERSION = 23300000
Enhanced Strobe mode = 0x1
EXTCSD: FW CONFIG = 0x0
EXTCSD: PARTITION CONFIG = 0x0
EXTCSD: BOOT BUS WIDTH = 0x0
Загрузка с еММС не используется
x1 (sdr) или x4 (ddr) используется при загрузке
EXTCSD: Device support partitioning features
EXTCSD: Device support enhanced technological features
EXTCSD: Device support extended partitions attribute
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 4194304 byte
RPMB: Use correct key to read/write! (254)
eMMC MID = 0x00D6, OEM ID = 0x0301
eMMC Product Name = 58A43A
eMMC Serial number = 0x36304C90
eMMC Revision = 1.0
eMMC Date 5/2021

----- eMMC 5.0 Health info -----
-> Pre EOL value = 1
Pre EOL -NORMAL- status
-> Life Time SLC value = 2
10- 20% device life time used
-> Life Time MLC value = 0

VCC 3,26V/232/67mA
VIO 1,84V/9mA
