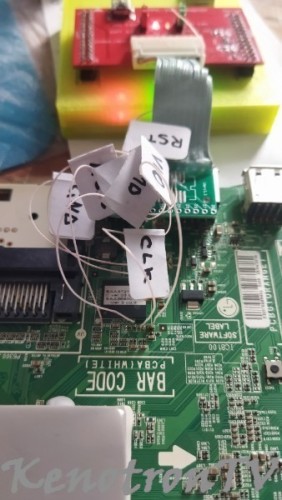

LG 55LB675V Damp eMMC + EEPROM + EAX65384003_ISP_PINOUT

   (0 reviews)

3 Screenshots

About This File

LG 55LB675V
MAIN: EAX65384003(1.2) 13.12.06. KJW.

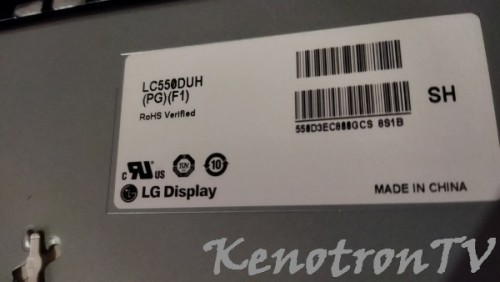

PANEL: LC550DUH (PG)(F1)
EMMC: Micron MTFC4GMCxM-1M (JW963/JWA50) IC8100 дамп не кодирован
EEPROM: 24C256 IC103 (2Ex = 24C256)

+ SERVICE MANUAL

LOG EMMC:

Спойлер

Using:
1bit bus
EMMC timing (16MHz)
Use Fixed Block operation
Using Ignore Errors
eMMC OCR 0xC0FF8080 after 3 attempts
Send CMD1 error!
eMMC (0) CID = FE014E5031585858581405B16264A0 (D7)
Send CMD2 error!
Found 1 eMMC device(s)
eMMC CSD = D04F01320F5913FFFFFFFFE78A4000
eMMC: Version 4.xx
eMMC: Maximum speed 26,00 MHz
eMMC: DSR Implemented
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 8 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1 bit
eMMC: EXT_CSD:
000000000000000103013C3C01030005
03030000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000000002019FF02000000003200
04090900000000035502030700100608
01010106090010000072400000080808
080808000202050503040F1700020006
00000000000000000000000078000000
00000000000000010005000000000007
0001C900000000000000000000000000
00000000000000000000000000010000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000A000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
eMMC: DRIVER_STRENGTH F
eMMC Status: 00000980
SWITCH_ERROR
CURRENT_STATE = Tran
EXTCSD: Device support HS SDR 26MHz
EXTCSD: Device support HS SDR 52MHz
EXTCSD: Device support HS DDR 52MHz 1.8V
EXTCSD: Device support HS200 SDR 1.8V
EXTCSD: EXT_CSD RST_n временно отключен
EXTCSD: ACC Size = 16384 byte
eMMC: EXT_CSD User Partition Size = 3833593856 Byte
eMMC: Version 4.5
EXTCSD: FW CONFIG = 0x0
EXTCSD: PARTITION CONFIG = 0x78
EXTCSD: BOOT BUS WIDTH = 0x0
Раздел User используется для загрузки
x1 (sdr) или x4 (ddr) используется при загрузке
EXTCSD: Device support partitioning features
EXTCSD: Device support enhanced technological features
EXTCSD: Device support extended partitions attribute
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 2097152 byte
eMMC: RPMB partition size 131072 byte
RPMB: Authentication key not yet programmed
eMMC MID = 0x00FE, OEM ID = 0x4E01
eMMC Product Name = P1XXXX
eMMC Name = MTFC4GMCxM-1M (JW963/JWA50)
eMMC Serial number = 0x5B16264
eMMC Revision = 1.4
eMMC Date 10/2013

VCC 3,25V/341/176mA
VIO 1,84V/37mA



Edited by avdalev
