LCD/LED TV: LG 65UF9500-UHD--Interconnect Diagram
65UF9500 INTERCONNECT DIAGRAM

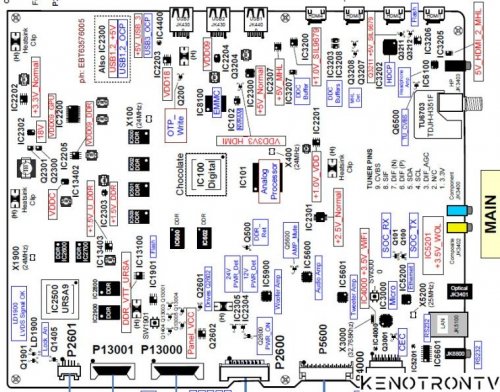

65UF9500 Main Board Component Voltages
65UF9500 P13000 LVDS Connector Video Waveforms
All LVDS signals are taken with SMPTY Color Bar signal input (1080P) Component Input. All LVDS signals are “Differential Pairs”. Scope Settings are 5mV per/division, 100uSec per/division
65UF9500 +3.5V_ST Voltage Distribution (In Stand-By)
65UF9500 +12V Voltage Distribution (Power On)

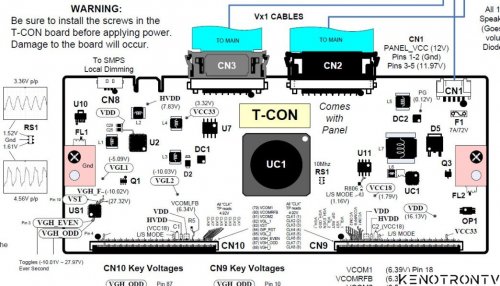

65UF9800 T-CON Component Voltages
