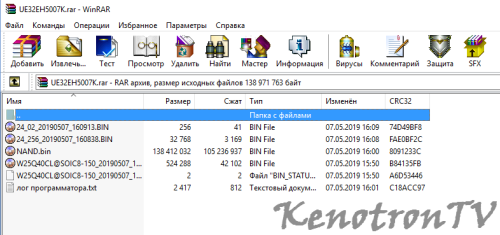

Samsung UE32EH5007K NAND+SPI+EEPROM 1.0.0

   (0 reviews)
Sign in to follow this

6 Screenshots

About This File

SAMSUNG LED
Model: UE32EH5007K UE32EH5007

Chassis/Version: U71A / Ver. TH02

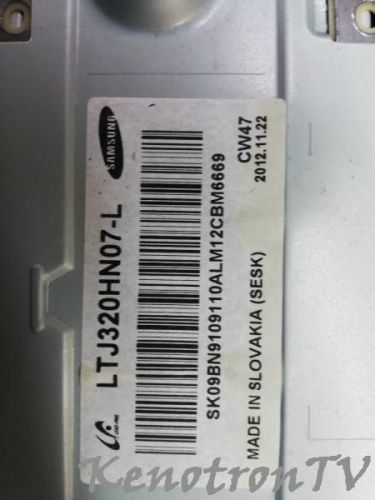

Panel: LTJ320HN07-L

LED backlight: 32F-3535LED-40EA, D1GE-320SC1-R3 (12,04,12)

T-CON: LSJ320HN03-S, SK98BN950 (BN41-01797A)

LED driver (backlight): integrated into PSU; 140V 260mA

PWM LED driver: SLC1012C (FAN7340)

MOSFET LED driver: MDD3752

Power Supply (PSU): BN44-00493B (PD32AVF_CHS Rev1.3)

PWM Power: SSC2S110

MOSFET Power: MDF11N65B

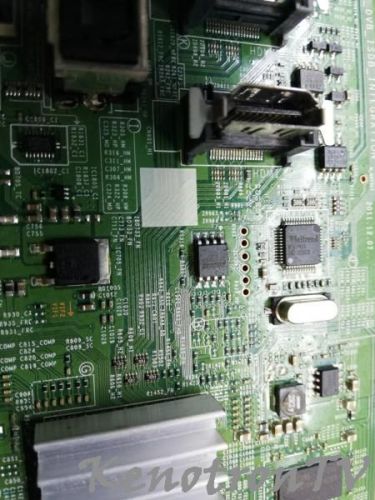

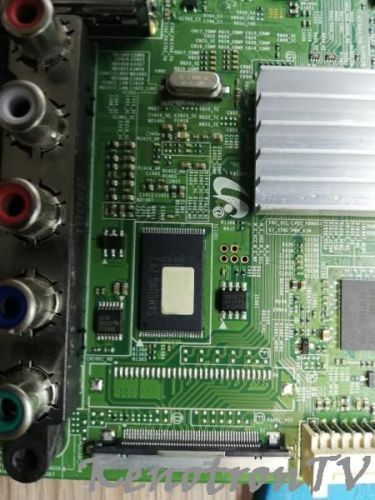

MainBoard: BN41-01795A BN94-05951J

IC MainBoard: DRAM: K4B1G1646G-BCH9; SOUND: NTP-7412S;

Тuner: DT0D40FVL084AA BN40-00231A

Control: AA59-00602A, IR BN96-22413D (BN41-01840B)


What's New in Version 1.0.0   See changelog

Released

No changelog available for this version.
