Информация о файле
Телевизор POLAR P32L32T2CSM
шасси TP.MS338E.PB803
матрица T320XVN02.G

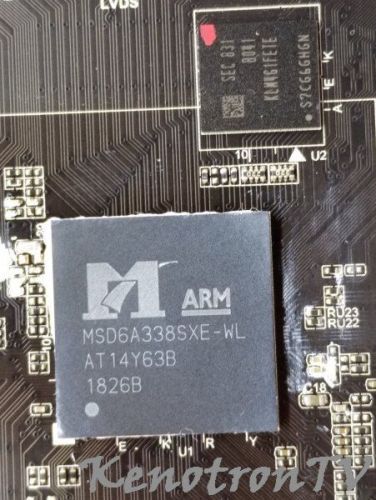

CPU MSD6A338SXE-WL
eMMC KLM4G1FETE (программатором определяется как 4FTE4R)
Лог программатора
Using:
8 bit bus
Slow Timing (8MHz)
Use Fixed Block operation
Using Ignore Errors
eMMC OCR 0xC0FF8080 after 2 attempts
CMD1 Get Response Error!
R3 Response Check Bits Error (0xE5)!
eMMC (0) CID = 1501003446544534520170A34F8485
CMD2 Get Response Error!
Found 1 eMMC device(s)
eMMC CSD = D02701320F5903FFF6DBFFEF8E4040
eMMC: Version 4.xx
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 16 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1 bit
eMMC: EXT_CSD User Partition Size = 3909091328 Byte
eMMC: Version 5.0
FW CONFIG = 0x0
PARTITION CONFIG = 0x8
BOOT BUS WIDTH = 0x2
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 524288 byte
eMMC MID = 0x0015, OEM ID = 0x0001
eMMC Product Name = 4FTE4R
eMMC Serial number = 0x70A34F84
eMMC Revision = 0.1
eMMC Date 8/2002
