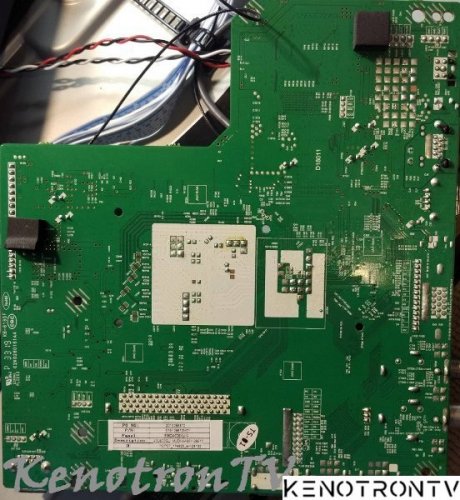

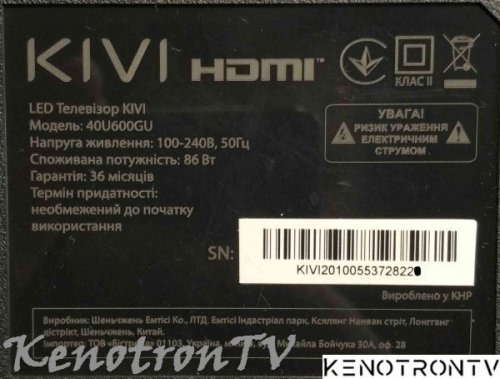

KIVI 40U600GU (HK.T.RT2861V09)

Logger inited
FileVersion = 0.0.1.32

Using:
1bit bus
Slow Timing (8MHz)
Use Fixed Block operation
Using Ignore Errors
eMMC OCR 0xC0FF8080 after 3 attempts
CMD1 Get Response Error!
eMMC (0) CID = 90014A483847346192A116D398AE56 (35)
CMD2 Get Response Error!
Found 1 eMMC device(s)
eMMC CSD = D02701320F5903FFFFFFFFE78A4000
eMMC Status: 00000700
CURRENT_STATE = Stby
eMMC: Version 4.xx
eMMC: Maximum speed 26,00 MHz
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 8 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Data0 Line is Valid
Data1 Line is Invalid
Data2 Line is Invalid
Data3 Line is Invalid
Data4 Line is Invalid
Data5 Line is Invalid
Data6 Line is Invalid
Data7 Line is Invalid
Valid mode SDR 1 bit
eMMC: EXT_CSD:
000000000000000101013F3F01000078
0103010000FFFAFFF001000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000101014040073805000000000000
00A10000000400056400000000000A01
0000000000000001550A0A0700200601
020108070711110C00E9000001000000
000000000000000001051F5700020008
00000000000000010000000000000000
00000000000000201F15000000000007
0003A400000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000000000000000000000037FFFF
0100000A000000000000000000000000
00000000000000000000000000000000
0000000000000000000000E90000013B
00000000000000000000000000000000
eMMC: DRIVER_STRENGTH 1F
eMMC Status: 00000980
SWITCH_ERROR
CURRENT_STATE = Tran
eMMC Status: 00000980
SWITCH_ERROR
CURRENT_STATE = Tran
EXTCSD: Device support 4K sector
EXTCSD: Current sector size 512 byte
EXTCSD: Device support HS SDR 26MHz
EXTCSD: Device support HS SDR 52MHz
EXTCSD: Device support HS DDR 52MHz 1.8V
EXTCSD: Device support HS200 SDR 1.8V
EXTCSD: Device support HS400 DDR 1.8V
EXTCSD: EXT_CSD RST_n временно отключен
EXTCSD: ACC Size = 16384 byte
eMMC: EXT_CSD User Partition Size = 7818182656 Byte
eMMC: Version 5.1
FFU SUPPORTED MODES = 0x1
FFU FEATURES = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU OPERATION CODE TIMEOUT = 0x0
FFU ARGUMENTS = 0xFFF0FFFA
FFU NUMBER OF FW SECTORS CORRECTLY PROGRAMMED = 0x0
OPTIMAL_READ_SIZE = 0x40
OPTIMAL_WRITE_SIZE = 0x40
DEVICE VERSION = 56.5
FIRMWARE_VERSION = 1610000000
EXTCSD: FW CONFIG = 0x0
EXTCSD: PARTITION CONFIG = 0x0
EXTCSD: BOOT BUS WIDTH = 0x0
Загрузка с еММС не используется
x1 (sdr) или x4 (ddr) используется при загрузке
EXTCSD: Device support partitioning features
EXTCSD: Device support enhanced technological features
EXTCSD: Device support extended partitions attribute
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 4194304 byte
RPMB: Use correct key to read/write!
eMMC MID = 0x0090, OEM ID = 0x4A01
eMMC Product Name = H8G4a
eMMC Serial number = 0x16D398AE
eMMC Revision = 10.1
eMMC Date 5/2003

----- eMMC 5.0 Health info -----
-> Pre EOL value = 1
Pre EOL -NORMAL- status
-> Life Time SLC value = 1
0- 10% device life time used
-> Life Time MLC value = 1
0- 10% device life time used
Number of runtime bad blocks for 0CE = 0
Number of factory bad blocks for 0CE = 0
Number of runtime bad blocks for 1CE = 0
Number of factory bad blocks for 1CE = 0
Number of runtime bad blocks for 2CE = 0
Number of factory bad blocks for 2CE = 0
Number of runtime bad blocks for 3CE = 0
Number of factory bad blocks for 3CE = 0

Используем все разделы eMMC
Читаем раздел User в файл H:\KIVI 40U600GU (HK.T.RT2861V09)\H26M41204HPR.user
Чтение начато
11:21:29
READ: читаем по 128 блоков
CRC for D0  error! Real CRC = 0x39EE, Calculated CRC = 0x1EC4
Ошибка чтения блока 2389376 (15%)
CMD7 Get Response Error!
Ошибка чтения блока 2389376, попытка 1
CRC for D0  error! Real CRC = 0x62C6, Calculated CRC = 0x8B1B
Ошибка чтения блока 2599296 (17%)
CMD7 Get Response Error!
Ошибка чтения блока 2599296, попытка 1
CRC for D0  error! Real CRC = 0x0, Calculated CRC = 0x1
Ошибка чтения блока 9794944 (64%)
CMD7 Get Response Error!
Ошибка чтения блока 9794944, попытка 1
Считано 7818182656 байт
Читаем раздел Boot1 в файл H:\KIVI 40U600GU (HK.T.RT2861V09)\H26M41204HPR.boot1
Чтение начато
13:31:29
READ: читаем по 128 блоков
Считано 4194304 байт
Читаем раздел Boot2 в файл H:\KIVI 40U600GU (HK.T.RT2861V09)\H26M41204HPR.boot2
Чтение начато
13:31:33
READ: читаем по 128 блоков
Считано 4194304 байт
RPMB пропускаем ..
Чтение завершено
13:31:37
EXT_CSD saved to Dumps/backup_H8G4a?_16D398AE_18.11.20_13-31-46.extcsd

eMMC disconnected
