About This File
LG FLATRON L1732S-SF

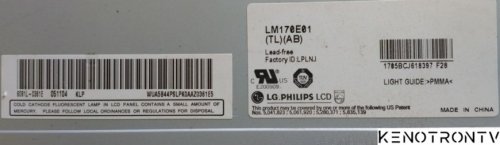

PANEL LM170E01

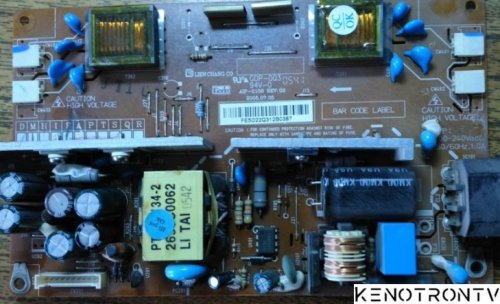

POWER FAN7601, OZ960GN
002: Scanning VGA port with wire mode A...

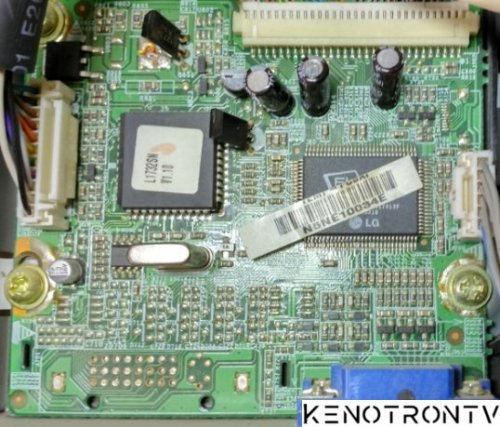

003: MYSON series, MCU type is MTV412, built-in flash.
004: Current selected : MTV412 #ISP,Size: 1Mbits,128KBytes.
005: >------------------------------------OK---------------------------------------
006: VGA wire mode: SCL: VGA--15; SDA: VGA--12.
007: Reading device......
008: Read successfully,18.46 seconds elapsed.
009: Auto verifying...
010: Verified successfully,18.53 seconds elapsed.
011: Buffer checksum: 16bit_0x9754, 32bit_0x00E39754.
012: 37 seconds elapsed.Average speed:3542 Bytes/s.
013: >------------------------------------OK---------------------------------------
014: File was saved.
015: Scanning VGA port with wire mode A...
016: MYSON series, MCU type is MTV512, built-in flash.
017: Current selected : MTV512 #ISP,Size: 512Kbits,64KBytes.
018: >------------------------------------OK---------------------------------------
019: VGA wire mode: SCL: VGA--15; SDA: VGA--12.
020: Reading device......
021: Read successfully,9.139 seconds elapsed.
022: Auto verifying...
023: Verified successfully,9.208 seconds elapsed.
024: Buffer checksum: 16bit_0x7CEA, 32bit_0x00757CEA.
025: 18.37 seconds elapsed.Average speed:3568 Bytes/s.
026: >------------------------------------OK---------------------------------------
027: File was saved.
