Информация о файле

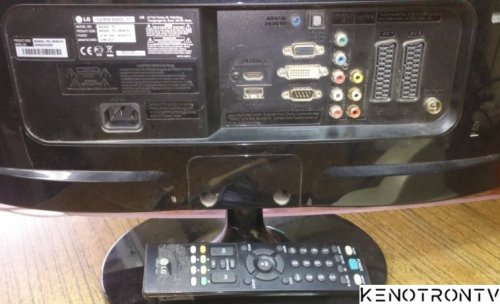

LG FLATRON M2262D-PZ
LD93A
EAX61073206(0)
SPI Flash : MX25L12805 (бумажная наклейка: 4667305 3.03 Е29А)

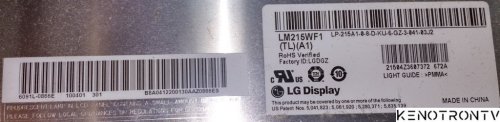

PANEL LM215WF1
ПДУ AKB33871424

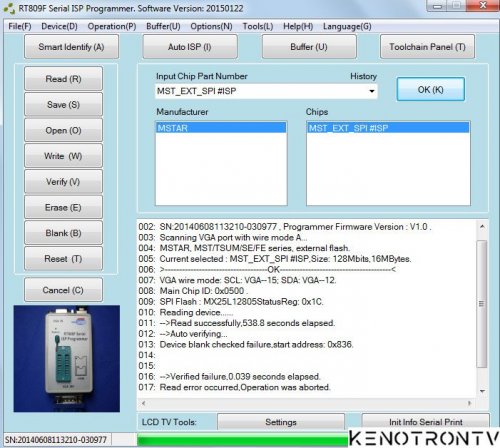

001: SN:20140608113210-030977
002: SN:20140608113210-030977 , Programmer Firmware Version : V1.0 .
003: Scanning VGA port with wire mode A...
004: MSTAR, MST/TSUM/SE/FE series, external flash.
005: Current selected : MST_EXT_SPI #ISP,Size: 128Mbits,16MBytes.
006: >------------------------------------OK---------------------------------------
007: VGA wire mode: SCL: VGA--15; SDA: VGA--12.
008: Main Chip ID: 0x0500 .
009: SPI Flash : MX25L12805StatusReg: 0x1C.
010: Reading device......
011: -->Read successfully,538.8 seconds elapsed.
012: -->Auto verifying...
013: Device blank checked failure,start address: 0x836.
014:
015:
016: -->Verified failure,0.039 seconds elapsed.
017: Read error occurred,Operation was aborted.

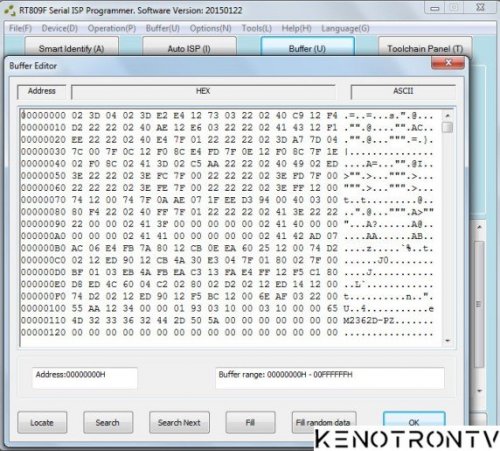

018: File was saved.
