Service manual 32LEC2300 (chassis LS0D)


2 Screenshots

About This File

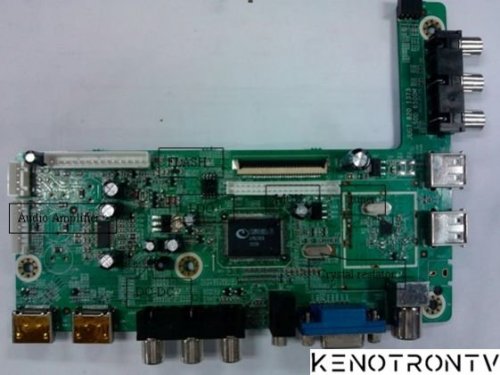

Service manual 32LEC2300 (chassis LS0D)
1 U201 TSUMV59XES-Z1
Processor with Video Decoder,
MCU,HDMI decoder,LVDS transmiter etc.
2 U1 R620D Tuner processor
3 U205 EN25Q32B-104HIP Flash memory, Place the main control
program
4 U802 SY8008B DC-DC,DC voltage converter
5 U804、 U002 LR1117/A-3.3$AZ1117H-3.3TR LDO(three terminal regulator)
6 U807 LR1117/A-1.8$AZ1117H-1.8TRE1 LDO(three terminal regulator)
7 U700 TPA3110D2 Audio Amplifier
8 Y201 JA18AS-24MHZ Crystal resonator
9 X1 JA18AS-16MHZ(16PF) Crystal resonator
