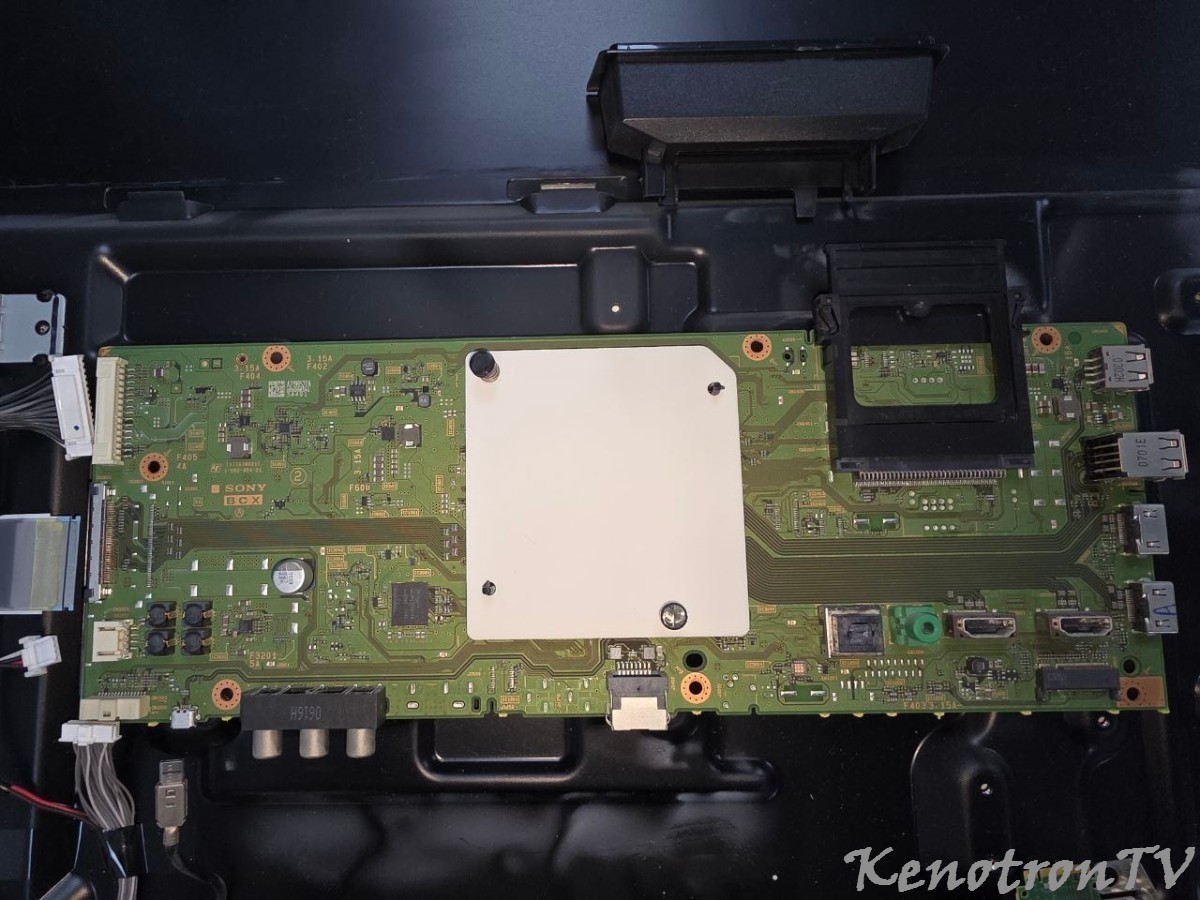

Sony KD-55FX7596, H26M52208FPR. Full dump (1-982-454-11) 1.0.0

Sony KD-55FX7596 Full dump (1-982-454-11)

APP Version : 11.60 Model : T56 MFG:2020-10-27

Device : H26M52208FPR(ISP)_1Bit

Init EMMC... OK! ( OCR register: C0FF8080 )

Chip Temporary write Protect bit(TMP_WRITE_PROTECT) was cleared!

USER :Unprotect Temporary Write Protection Groups / Checked Total Groups : 0 / 3757

Erase User Area : Succeeded. Time : 0.343 S -- Erased Size :15388672 KB

Programming BOOT1 : Succeeded. Time : 1.856 S -- Partition Size :4096 KB Processing Size from the File : 4096 KB )

Programming BOOT2 : Succeeded. Time : 1.935 S -- Partition Size :4096 KB Processing Size from the File : 4096 KB )

Analysis file is complete, Space usage: 20.29% time: 92S

Programming User Area : Succeeded. Time : 1400.218 S -- Partition Size :15388672 KB Processing Size from the File : 15267840 KB )

Programming ECSD Succeeded. Time : 10 ms

Programming 32 bits CheckSum : 0x A277B052

Verify Restart EMMC ....

Init EMMC... OK! ( OCR register: C0FF8080 )

Verifying ECSD Succeeded

Verifying BOOT1 : Succeeded. Time : 1.669 S -- Partition Size :4096 KB Processing Size from the File : 4096 KB )

Verifying BOOT2 : Succeeded. Time : 1.670 S -- Partition Size :4096 KB Processing Size from the File : 4096 KB )

Verifying User Area : Succeeded. Time : 1262.422 S -- Partition Size :15388672 KB( Processing Size from the File : 15267840 KB )

Programming Verifying Succeeded 32 bits CheckSum : 0x A277B052

Programming Successful! Total Time : 44 M 31 S
