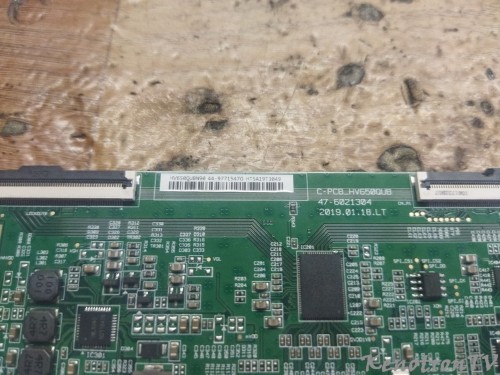

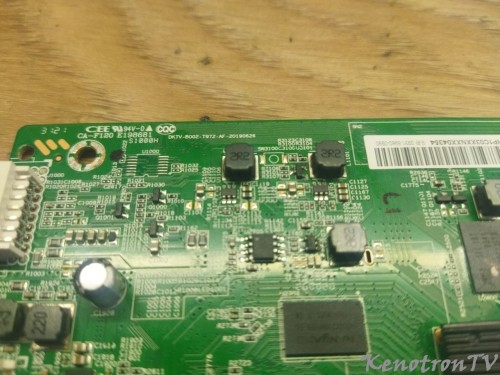

Xiaomi Mi L65M5-ES China, DKTV-B002-T972-AF-20190626 Damp eMMC + spi T-Con

Found 1 eMMC device(s)
eMMC CSD = D02701320F5903FFF6DBFFEF8E4040
eMMC: Version 4.xx
eMMC: Maximum speed 26,00 MHz
eMMC: Read Block Length 512 byte
eMMC: Write Block Length 512 byte
eMMC: Card High Capacity
eMMC: CSD User Partition Size = 1073741824 Byte
eMMC: WP Status True
eMMC: WP Size 16 erase groups
eMMC: Permanent WP is False
eMMC: Temorary WP is False
Valid mode SDR 1/4/8 bit
SET: Using HS Timing
eMMC: EXT_CSD:
000000000000000101013F3F01020005
0703030000C781000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000000
0000000000000000000000010F000000
00000000000000000000000000000000
00000000000000000000000000000000
00000101010010010000000000000000
000900000100000A3C00000000001E00
0000000000000002551B110700200701
010110070700110703A3E00001000000
0000000000000000020A1F5700020008
00000000000001010000000000000000
00000000000000201F14000000010007
00074700000000000000000000000000
00000000000000000000000000010000
00000000000000000000000000000000
00000000000000000000050000000000
00000000000000000000010000000000
0000000000000000000000C8C800000F
00000000000000000000000000000000
00000000000000000000000000000000
00000000000000000000000000000039
00000000000000000000000000000000
eMMC: DRIVER_STRENGTH 1F
EXTCSD: Device support HS SDR 26MHz
EXTCSD: Device support HS SDR 52MHz
EXTCSD: Device support HS DDR 52MHz 1.8V
EXTCSD: Device support HS200 SDR 1.8V
EXTCSD: Device support HS400 DDR 1.8V
EXTCSD: [162] EXT_CSD RST_n постоянно включен
EXTCSD: [225] ACC Size = 32768 byte
eMMC: EXT_CSD User Partition Size = 31268536320 Byte
eMMC: Version 5.1
Enhanced Strobe mode (HS400) = 0x1
EXTCSD: [493] FFU SUPPORTED MODES = 0x3
EXTCSD: [492] FFU FEATURES = 0x0
EXTCSD: [491] FFU OPERATION CODE TIMEOUT = 0x0
EXTCSD: [491] FFU OPERATION CODE TIMEOUT = 0x0
EXTCSD: [487] FFU ARGUMENTS = 0xC7810000
EXTCSD: [302] FFU NUMBER OF FW SECTORS CORRECTLY PROGRAMMED = 0x0
EXTCSD: [266] OPTIMAL_READ_SIZE = 0x0
EXTCSD: [265] OPTIMAL_WRITE_SIZE = 0x10
EXTCSD: [262] DEVICE VERSION = 0.0
EXTCSD: [254] FIRMWARE_VERSION = 0000000000000009
EXTCSD: [169] FW CONFIG = 0x0
EXTCSD: [179] PARTITION CONFIG = 0x0
EXTCSD: [177] BOOT BUS WIDTH = 0x0
Загрузка с еММС не используется
x1 (sdr) или x4 (ddr) используется при загрузке
EXTCSD: Device support partitioning features
EXTCSD: Device support enhanced technological features
EXTCSD: Device support extended partitions attribute
EXTCSD: Device support cache (65536 kbits)
EXTCSD: [167] REL Write supported (0x1F)
EXTCSD: [222] REL sectors (1)
EXTCSD: [166] RPMB Support 8K transfer
EXTCSD: [231] SEC features = 0x55
Secure purge operations are supported
Device supports the automatic erase operation on retired defective portions of the array
Device supports the secure and insecure trim operations
Device supports the sanitize operation
eMMC: Erase Group Size = 512 KByte (1024 blocks)
eMMC: Boot partition size 4194304 byte
eMMC: RPMB partition size 4194304 byte
RPMB: Authentication key not yet programmed
eMMC MID = 0x0015, OEM ID = 0x0001 (Samsung)
eMMC Product Name = BJTD4R
eMMC Name = KLMBG2JETD-B041
eMMC Serial number = 0x1456B6DB
eMMC Revision = 0.9
eMMC Date 3/2021

----- eMMC 5.0 Health info -----
-> Pre EOL value = 1 (0x1)
Pre EOL -NORMAL- status
-> Life Time SLC value = 1 (0x1)
0- 10% device life time used
-> Life Time MLC value = 1 (0x1)
0- 10% device life time used

VCC 3,27V/166/12mA
VIO 2,00V/8mA
